Ball socket machine sliding door

ball cone trimming machine

Very easy to use and quickly ready for use.

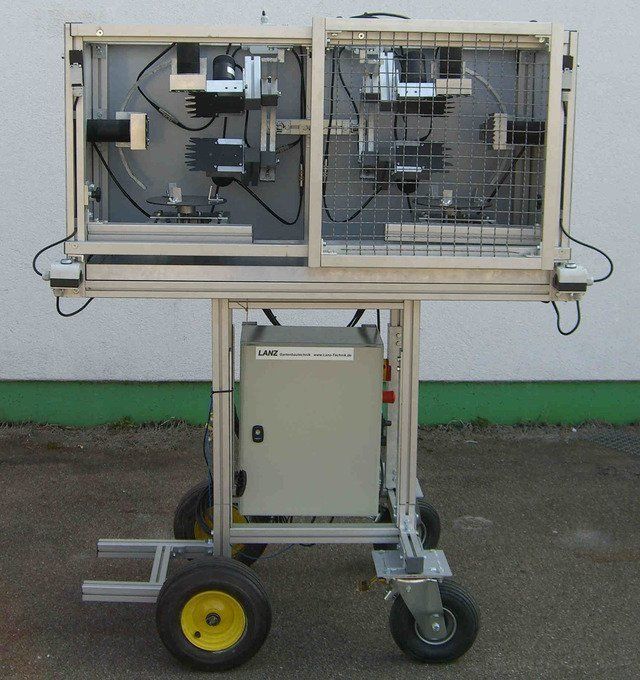

B002 Sliding door trimming machine for ball and cone

Description:

Very flexible trimming machine. Easy to operate. You can drive the machine to the plants or work through the bed. No transport time for the plants to the work site. By closing the sliding door, the trimming process begins and the finishedThe trimmed plant can be removed. 100% safety. The cutting circumference can be adjusted quickly and easily. We also manufacture special frames to move between roller tables or individual stations for larger diameters.

Technical data:
Ball diameter 10 cm to 60 cm (larger on request)
Optionally with three-phase motors or 24V DC motors
Also very suitable for cones
Dimensions: 1.8 mx 0.8 mx 1.8 m
Weight: 100 kg

different versions:
With three-phase motors
(long lifespan)
also for cones and balls to Scutting
special frame to move between fixed tables

Kugel Kegel


  • Fixed pruning machine for round plants
